Bray 100 Handwired 100 Watt Custom Plexi Style Amplifier:

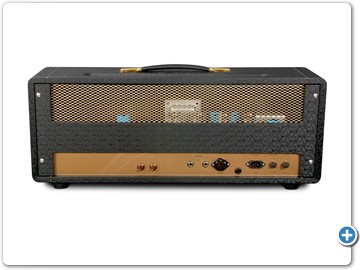

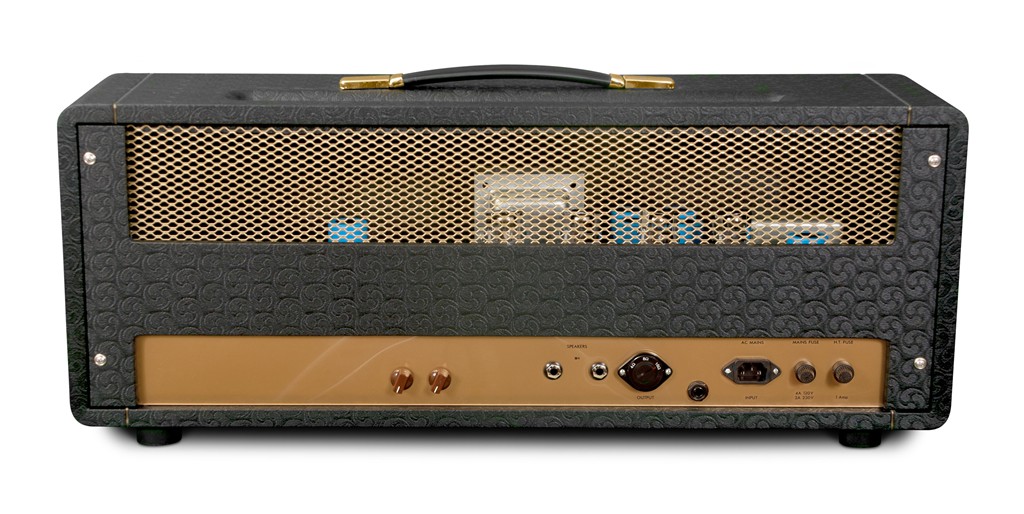

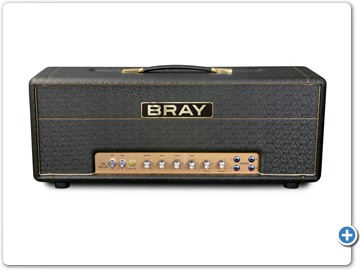

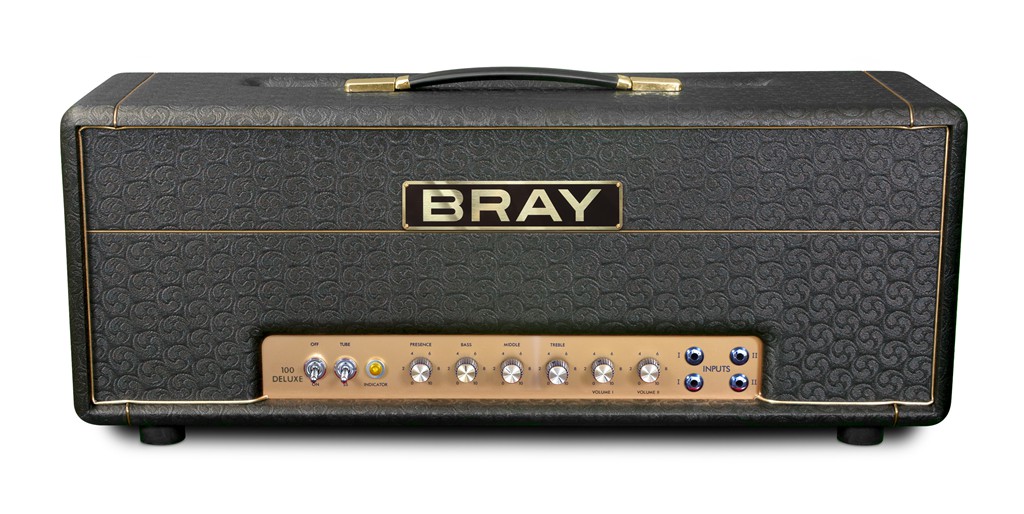

Bray 100 - Front Bray 100 - Back vista photo gallery creatorby v5.9

For players needing serious power and headroom, I offer the Bray 100, custom voiced to your needs, playing style, and existing gear. $3100 for the Standard model, and $3400 for the fully-loaded Deluxe model.

The Standard Bray 100 includes:

-Completely hand-wired, hand-soldered Point-To-Point turret board and components

-Precision tight-wound tube filament wiring design to eliminate AC filament hum

-Bray spec'd custom-wound transformers by Heyboer

-Gold color 16 gauge zinc-plated steel chassis

-3 ECC83 preamp tubes, 4 EL34 output tubes

-Output Level “Wife Knob” control lets you dial down the volume to whisper levels without losing gain or overdrive

-Plexi Style Channel 1 Bright and Channel 2 Dark channels allow you to mix each one into your sound how you want without the use of a separate jumper cable

-Plus Mode places the channels from parallel into series (as well as a few tonal changes), allowing even higher gain sounds.

-Your choice of tolex colors, at no additional charge

-(H) 10-3/4" x (W) 29" x (D) 8-1/4" , 44 lbs.

Lifetime Warranty

-A soundclip of your actual amplifier upon completion, in case any tweaking or adjustment is needed prior to shipping.

The Bray 100 Deluxe also includes the following:

-Dual Output Level “Wife Knobs” and included LED footswitch allows switching to a louder volume level for solos, as well as keeping your volume level loud when turning down your guitar's volume level for a clean sound

-Harmonic Switch push/pull switch added to the Treble Control, adding harmonics and upper mids when pulled out. I enjoy this with guitars that have somewhat scooped pickups such as vintage PAF styles.

-Vintage/Hot Switch push/pull switch added to the Midrange Control, allowing a slightly more aggressive tone when pulled out, and a mellower sound when pushed in. Useful when in Plus Mode, push it in to take a slight edge off, as well as for very clean sounds.

-Channel 1 Bright Switch added to the Channel 1 Volume Control, adding high frequencies when pulled out. Although bypassed when the volume control is all the way up, it is useful for Classic Rock sounds when the Channel 1 Volume is set around 6. Pulled out, it adds just a bit of “clang” to bring you out of the mix.

“100 - Clean, classic rock, brown tones”

“100 - Plus Mode built for Jimi type tones w/ Univibe, classic rock, higher gain rock tones”

“100 - Classic to variety of Brown and high gain tones”

“100 - Classic to higher gain tones”


“100 - Classic to higher gain tones”
